Transform Your Workspace in Days, Not Weeks with New Turnkey Solutions from 80/20
Hartfiel Automation is excited to announce the availability of 80/20’s latest innovation: a comprehensive collection of preconfigured workstation kits designed to streamline your facility setup while maintaining the flexibility that made 80/20 the industry standard for modular aluminum framing systems.
These nine new preconfigured solutions eliminate the complexity of custom design while delivering the quality and adaptability your operations demand. Each kit arrives with everything you need, from structural components to integrated lighting, power distribution, and ergonomic accessories. You can deploy professional workstations quickly while maintaining full customization potential.
Height-Adjustable Lift Workstations: Ergonomics Meets Productivity

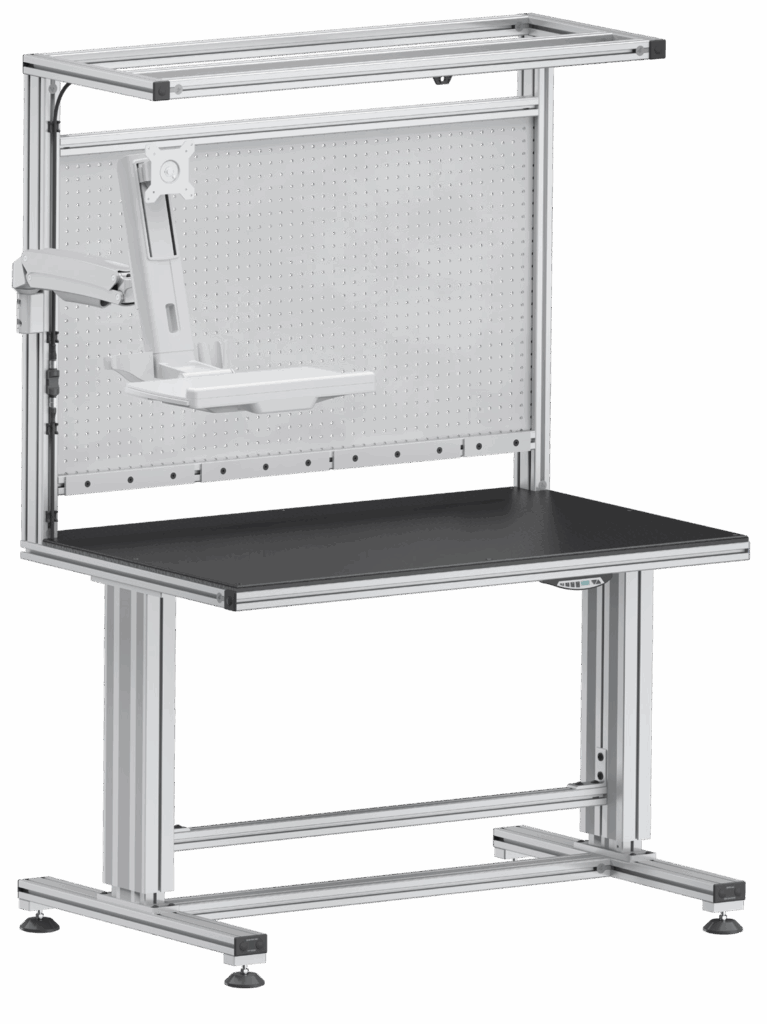

Lift Workstation with Pegboard (Q-106098)
Dimensions: 48″L × 30″D × 68.7″H
Load Capacity: 500 lbs
This compact powerhouse combines ergonomic height adjustment with organized tool storage. The two-leg column lift system features a programmable keypad with three memory height settings, providing 16 inches of travel to accommodate different operators and tasks throughout the day.
Key Features:
- Substantial 0.50″ black HDPE work surface (48″ × 30″)
- 45.75″ × 25.75″ white HDPE pegboard wall for visible tool organization
- Integrated 1200mm rope lighting with dimmer switch
- Monitor mount with keyboard tray and mouse slot for digital workflow integration
- 15AMP, 110V power strip with 8 plugs and 6ft cord
- Complete accessory package: tool hangers, end caps, bin hangers, cable management
Ideal Applications: Assembly stations requiring frequent tool access, inspection workstations, quality control stations, electronics assembly
Lift Workstation with Magnetic Dry Erase Board (Q-106099)
Dimensions: 60″L × 30″D × 68.7″H
Load Capacity: 500 lbs
Perfect for collaborative workspaces or training environments, this larger lift station incorporates a double-sided magnetic dry erase board for visual work instructions, process documentation, or team communication.
Key Features:
- Generous 60″ × 30″ × 0.50″ black HDPE work surface
- 57.75″ × 30.75″ white double-sided magnetic dry erase board
- Identical lift system: programmable 16″ height adjustment with 3-memory settings
- 1200mm rope lighting with dimmer
- Workstation arm with monitor mount, keyboard tray, and mouse slot
- 15AMP, 110V, 8-plug power strip
- T-slot cover and rubber panel gasket for clean, professional appearance
Ideal Applications: Training stations, collaborative assembly areas, process improvement workstations, engineering development labs
Stationary Workstations: Maximum Stability for Demanding Tasks
Stationary Workstation with Pegboard (Q-106100)
Dimensions: 72″L × 30″D × 73.5″H
36″ Work Height
When height adjustment isn’t required, this stationary configuration delivers rock-solid stability with extensive tool organization. The 72-inch length provides generous workspace for larger assemblies or multiple concurrent tasks.
Key Features:
- Extra-large 72″ × 30″ × 0.50″ black HDPE work surface
- Expansive 69.75″ × 30.75″ × 0.25″ white HDPE pegboard wall
- Fixed 36″ work height optimized for standing operations
- Adjustable-height shelf (72″ × 15″ × 0.50″) for materials staging
- 1200mm rope lighting with dimmer
- 15AMP, 110V, 8-plug power strip
- Complete pegboard accessory set
Ideal Applications: Final assembly stations, packaging operations, large component work, maintenance repair stations
Stationary Workstation with Shelves (Q-106101)
Dimensions: 72″L × 30″D × 73.5″H
36″ Work Height
This configuration prioritizes enclosed storage over open pegboard organization, featuring built-in shelf compartments ideal for protecting sensitive components, organizing small parts, or maintaining clean workspace aesthetics.
Key Features:
- 72″ × 30″ × 0.50″ black HDPE work surface
- Dual 18″ × 18″ × 27″ enclosed shelf openings for protected storage
- Plug-in LED workstation light with motion sensor (6000 lumens)
- 36″ fixed work height
- 15AMP, 110V, 8-plug power strip
- Professional finished appearance
Ideal Applications: Clean room assembly, small parts assembly, electronics work, precision instrument stations

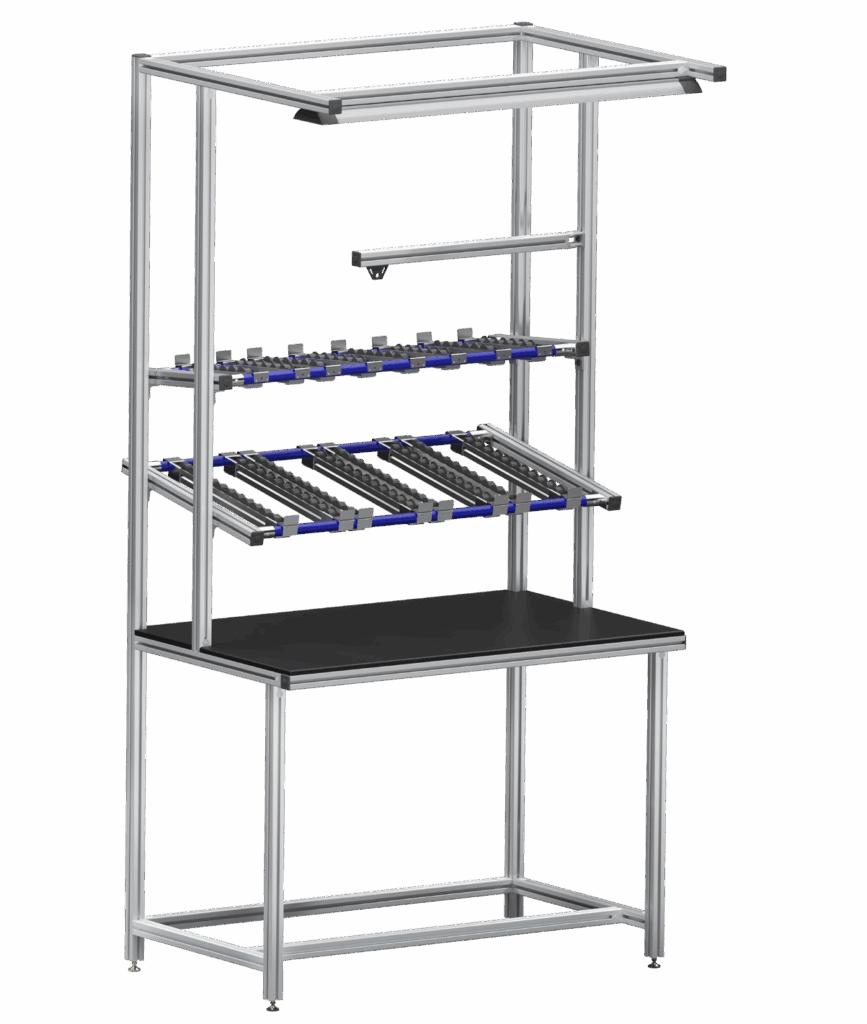

Stationary Workstation with Flow Rack (Q-106102)
Dimensions: 48″L × 30″D × 94.5″H
36″ Work Height
Optimize material flow with this design incorporating two rows of gravity-fed flow racks built directly into the workstation structure. Components move seamlessly from inventory to work surface, eliminating unnecessary motion and reducing pick errors.
Key Features:
- 48″ × 30″ × 0.50″ black HDPE work surface
- Integrated roller track using 80/20 Pipe & Joint system
- Two-level flow rack configuration for organized inventory presentation
- Motion-sensing LED workstation light (6000 lumens)
- 36″ work height
- 15AMP, 110V, 8-plug power strip
Ideal Applications: Kitting stations, lean manufacturing cells, JIT assembly operations, order fulfillment stations
Mobile Solutions: Flexibility Where You Need It
Mobile Cart with Foldable Extensions (Q-106103)
Dimensions: 79.125″L × 47.5″D × 36″H (79.125″L when extended)
Folded Width: 21″
This mobile workstation transforms from a compact 21-inch-wide cart into a spacious work surface exceeding 79 inches in length. Foldable extensions lock securely in place, creating a stable platform for collaborative work, then fold down for easy storage or transport through standard doorways.
Key Features:
- Large 79.125″ × 47.5″ × 0.375″ white HDPE work surface
- Dynamic pivot mechanism with secure ball catch locking
- Dual central storage compartments (18″ × 46.125″ × 0.375″)
- 16.5″ × 30″ pegboard sections on storage doors
- 36″ work height
- Heavy-duty casters for smooth mobility
Ideal Applications: Mobile maintenance operations, flexible manufacturing cells, collaborative project work, training environments, temporary workstations

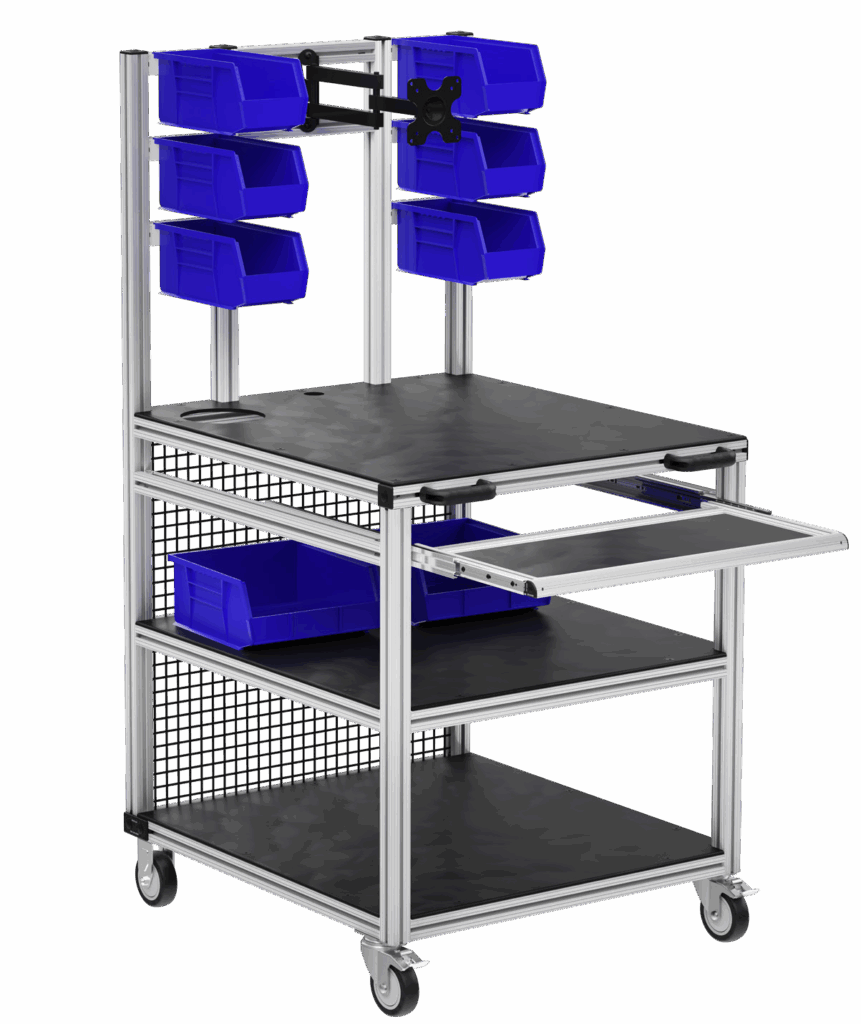

Mobile Workstation with Monitor Mount (Q-106104)
Dimensions: 30″L × 32″D × 62.94″H
Tabletop Height: 38.94″
Bring digital workflows directly to the point of use with this compact mobile workstation featuring integrated monitor mounting and smart storage solutions. The thermoplastic wire mesh backing provides excellent visibility while securing tools and supplies.
Key Features:
- 30″ × 32″ × 0.25″ black PVC acrylic tabletop
- Monitor mount accommodates displays up to 34″
- Pull-out tray (24″ × 10″) with smooth drawer slides for keyboard or documents
- Three shelf openings: 27″ × 30″ × 12.25″
- Thermoplastic wire mesh backing for visibility and ventilation
- Machined panel openings for cable management
- Storage bins with hangers included
- Plate casters for maneuverability
Ideal Applications: Mobile data collection, roving quality inspection, digital work instruction deployment, temporary work cells, process audit stations

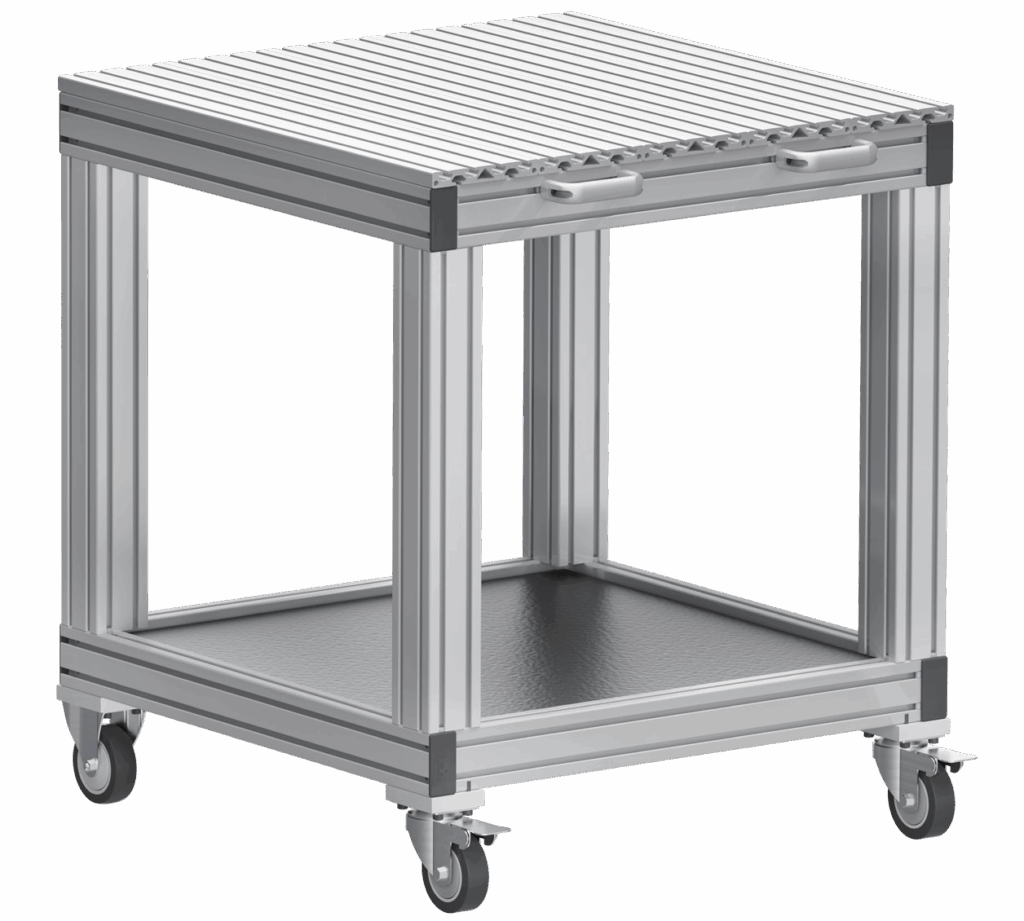

Mobile Robotic Cart (Q-105782)
Dimensions: 31.5″L × 31.5″D × 36.58″H
Load Capacity: Designed for collaborative robot mounting
Purpose-built for the robotics revolution, this heavy-duty mobile platform provides the structural rigidity required for collaborative robot mounting while maintaining portability between workstations or production lines.
Key Features:
- Unique 31.5″ × 31.5″ × 0.787″ T-slot aluminum tabletop profile
- Direct mounting capability for robots using 80/20 plates and accessories
- 29″ × 29″ black HDPE lower shelf for robot controllers and accessories
- Rigid 40 series T-slot profiles for maximum structural integrity
- Heavy-duty construction: 149.67 lbs
- Aluminum cabinet handles for controlled movement
Ideal Applications: Collaborative robot deployments, mobile automation cells, flexible manufacturing systems, robot demonstration and training

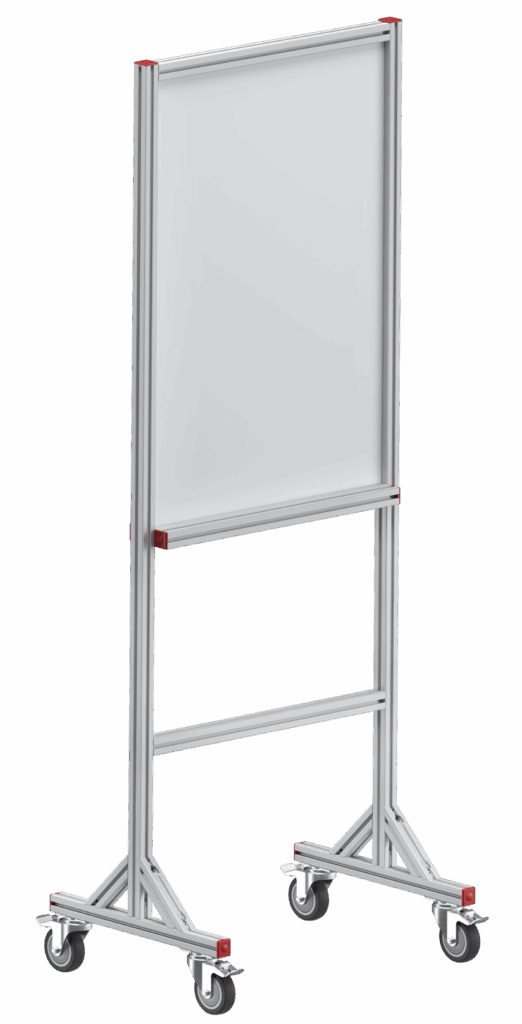

Mobile Display with Magnetic Dry Erase Board (Q-105781)
Dimensions: 30″L × 20″D × 80″H
Board Height: 40″ from ground
Transform communication and training with this mobile visual management solution. The double-sided magnetic dry erase board sits at optimal viewing height, while the compact footprint and mobility enable rapid deployment wherever visual information is needed.
Key Features:
- 27″ × 37″ white double-sided magnetic dry erase board
- 40″ board height for comfortable viewing and writing
- Compact 20″ × 30″ footprint fits narrow aisles
- 80″ overall height for visibility across work areas
- Red end caps and T-slot covers for professional appearance
- Lightweight (50.35 lbs) for easy repositioning
- 45-degree support bracing for stability
Ideal Applications: Visual management boards, mobile training aids, process documentation displays, safety communication, lean manufacturing visual controls
Complete Kit Packaging: Everything Included
Each workstation kit ships in standard 80/20 packaging with:
- All structural aluminum profiles, precision cut to length
- Complete hardware and fastener sets
- Work surfaces, panels, and accessories as specified
- Electrical components including power strips and lighting
- Casters or leveling feet as appropriate
- Comprehensive assembly instructions
- All mounting hardware and brackets
You’ll need basic hand tools for assembly. No specialized equipment required.
Ready to Transform Your Workspace?
These nine new configurations represent just the beginning of what’s possible with 80/20’s modular framing system. Whether you need a single ergonomic workstation or a complete production line transformation, Hartfiel Automation’s team can help you identify the optimal solution.
Contact your Hartfiel Automation sales representative today to discuss:
- Which preconfigured kit best matches your application
- Customization options to perfectly fit your workflow
- Integration with existing equipment or automation
- Complete facility layouts incorporating multiple workstations
- Pricing and delivery timelines
With over 65 years of experience strengthening American manufacturing through innovative automation solutions, Hartfiel Automation combines 80/20’s world-class products with unmatched application expertise. Let us help you build the workspace that drives your productivity forward.
